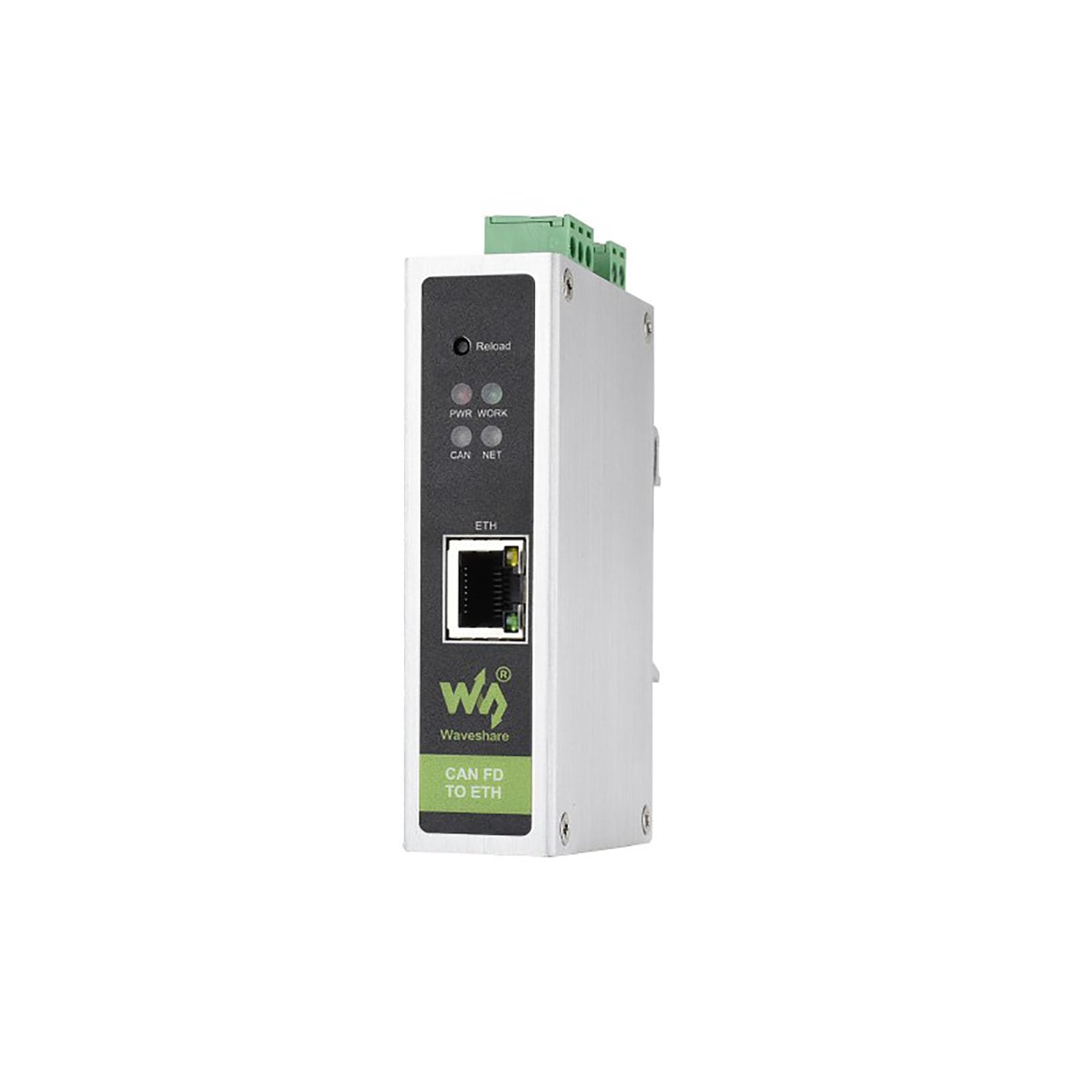

CAN FD to Ethernet Converter, Industrial CAN FD to ETH Protocol Converter Gateway, 5 Conversion Modes, Supports CAN 2.0A/2.0B, Bidirectional Data Communication, DIN-Rail Mount, Wide 9–36V Input

Marke: iiunius
Enthaltene Komponenten: 1x CAN FD TO ETH Konverter, 1x Netzstecker, 1x Schraubendreher
Obere Temperaturstufe: 85 Grad Celsius
Datenübertragungsrate: 5 Megabit pro Sekunde
Anzahl der Artikel: 1

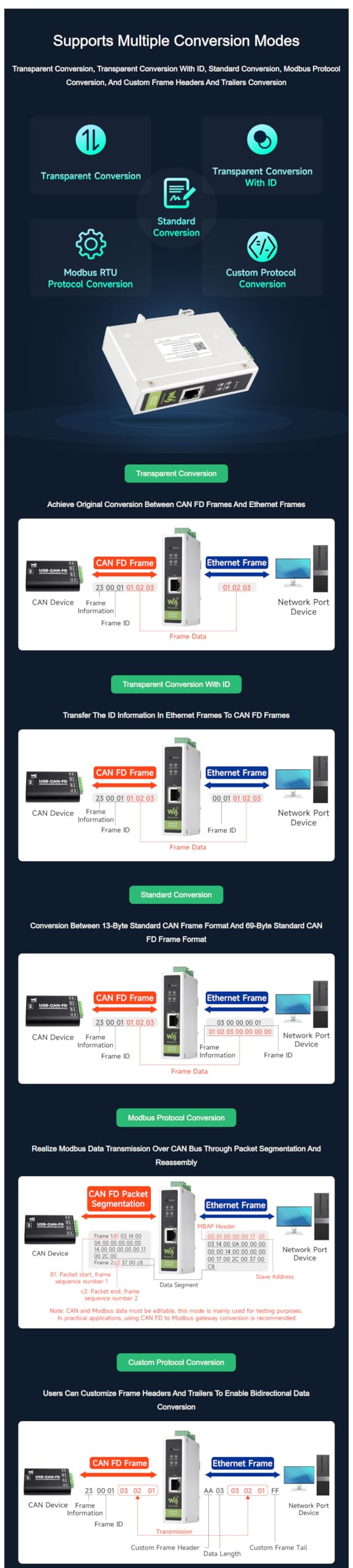

- ✅ 5 Data Conversion Modes for Flexible Integration — Supports transparent conversion, transparent with ID, standard protocol, Modbus protocol, and custom protocol conversion; ideal for complex CAN FD and Ethernet communication environments.

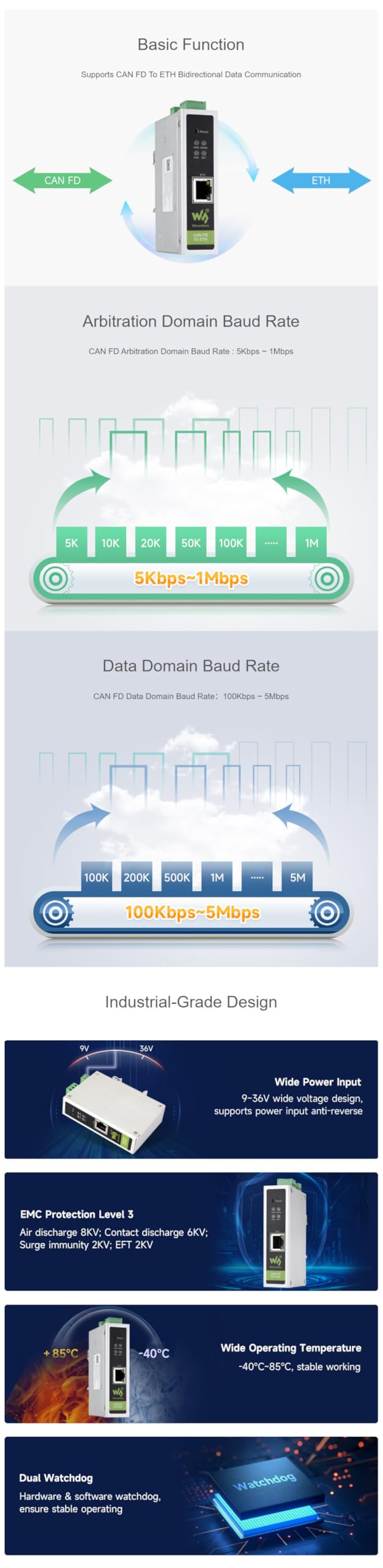

- 🍓 High-Speed CAN FD & CAN 2.0A/2.0B Support — Compatible with both CAN FD and CAN 2.0A/2.0B protocols, ensuring reliable bidirectional data communication with baud rates up to 5 Mbps in the data domain.

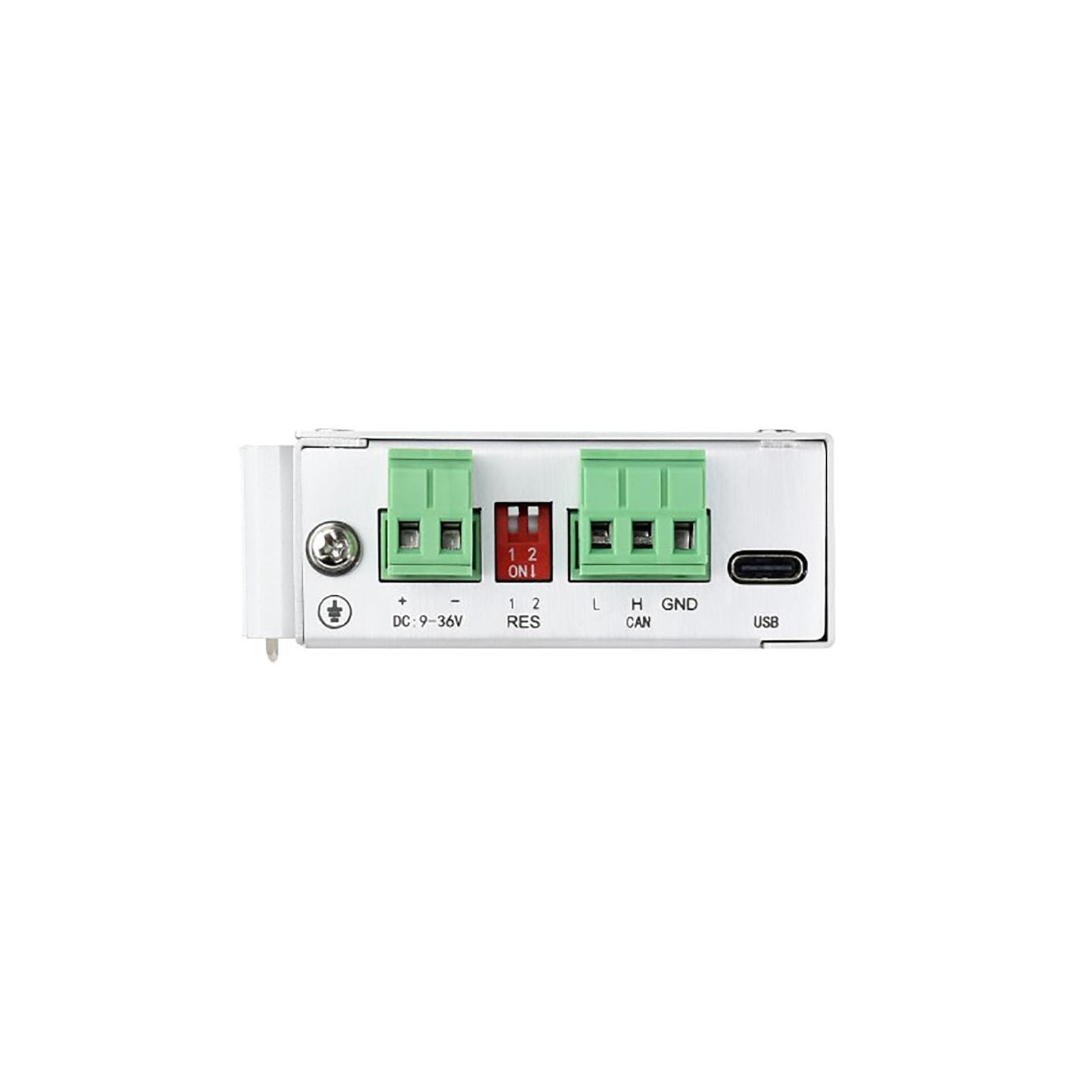

- ⚙️ Industrial-Grade Stability and Reliability — Operates stably from -40 °C to 85 °C, with a 9–36 V wide power input range and built-in 120 Ω terminal resistors (switchable via DIP switches), making it suitable for harsh industrial environments.

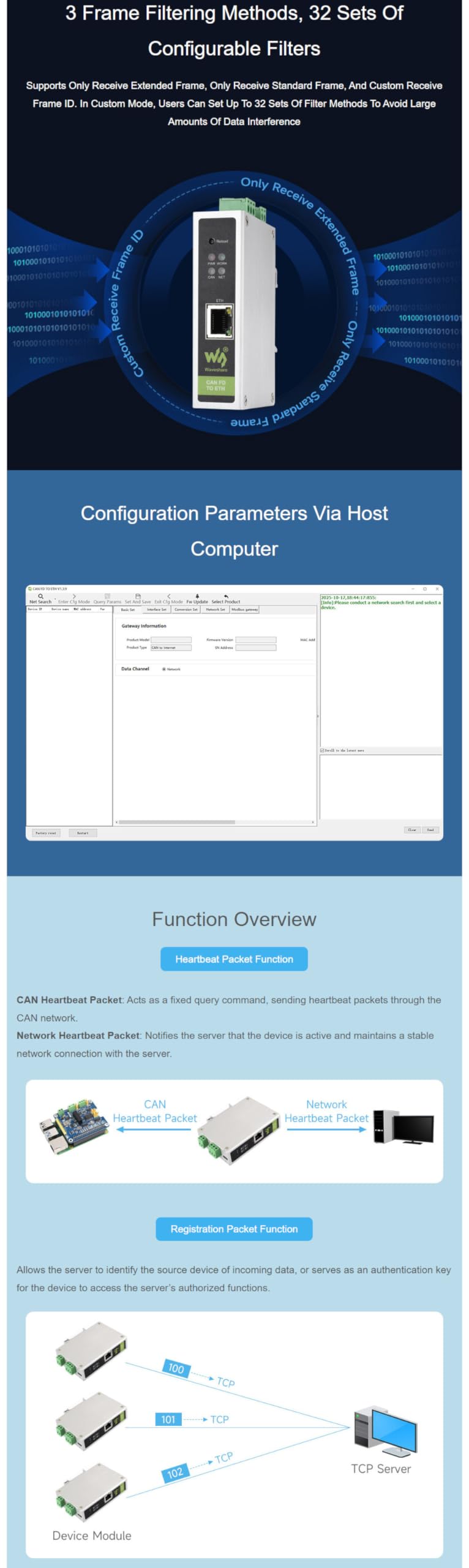

- 🔧 Easy Configuration & Installation — Parameters can be configured via a host computer, and the DIN-rail mounting design allows quick, secure installation for industrial control systems or automation networks.
- 💡 Compact, Durable, and Cost-Effective Design — The CAN FD to ETH converter offers high performance, low latency, and stable transmission in a compact housing—ideal for automation, monitoring, and control system integration.
