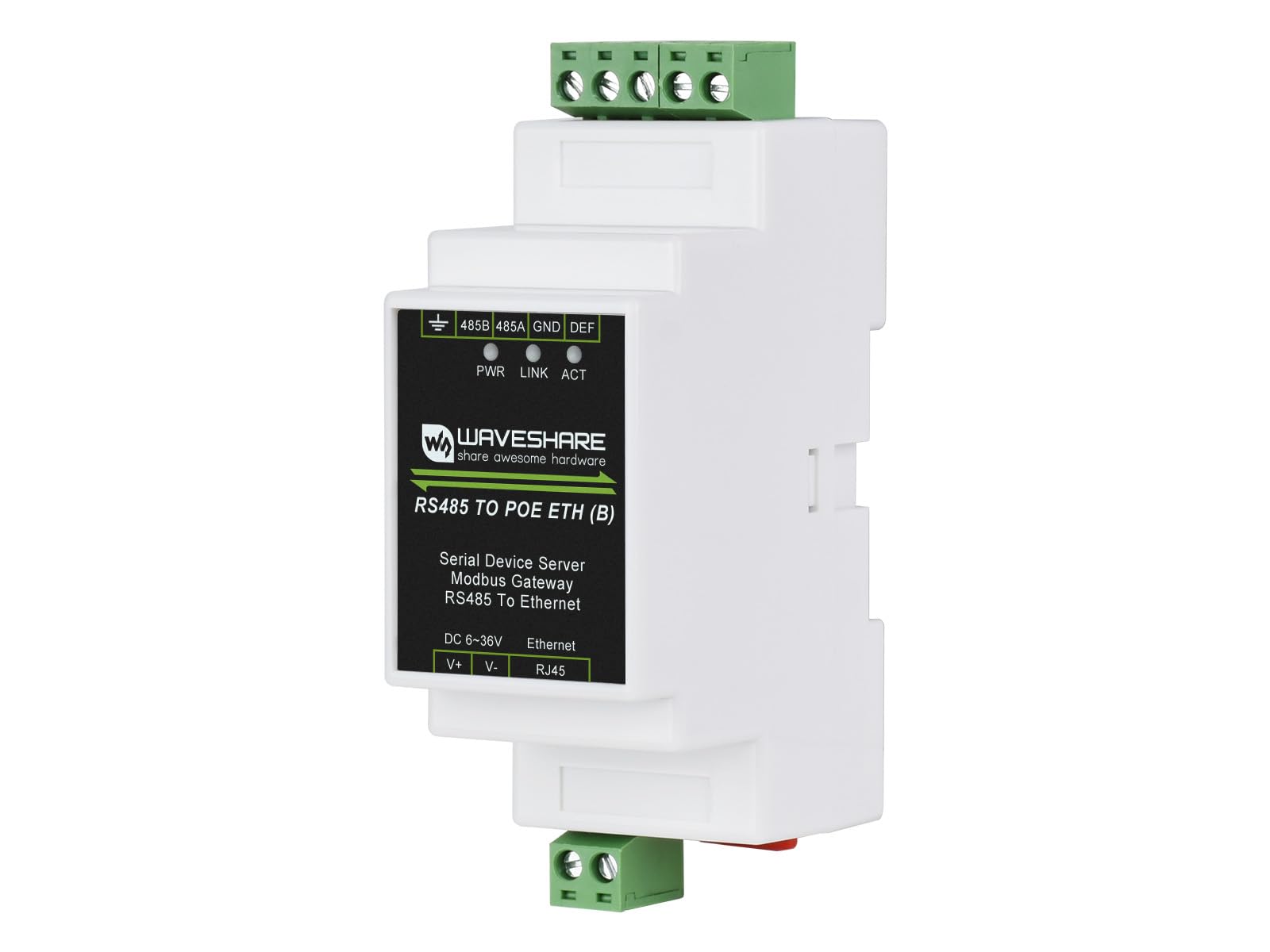

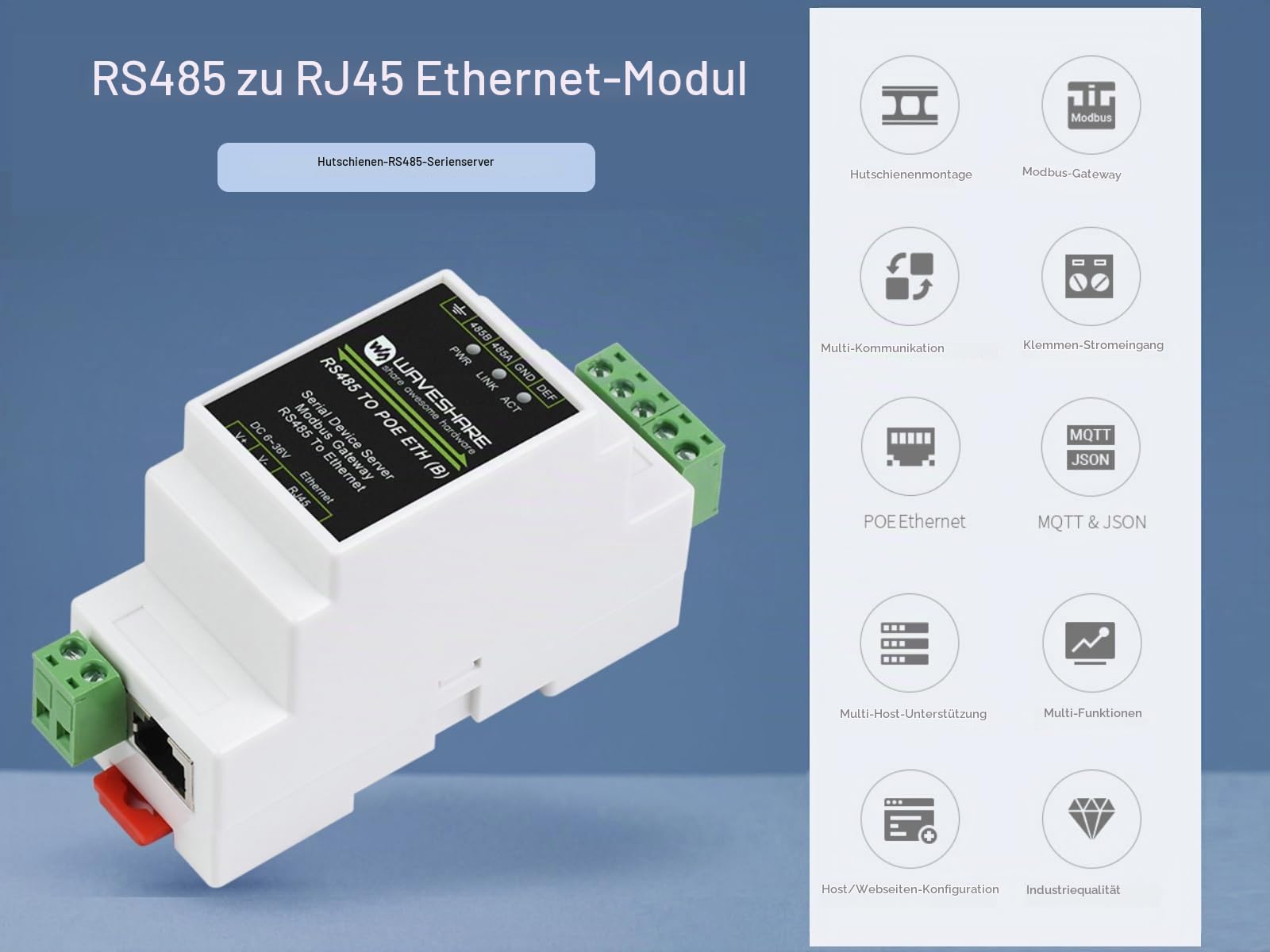

Industriell RS485 zu Ethernet Seriell Server Modbus Gateway MQTT Gateway TCP/IP zu Seriell Modul, Unterstützt PoE Ethernet Port Netzteil, mit Strom und Signalisolationsschutz, Schienenmontage

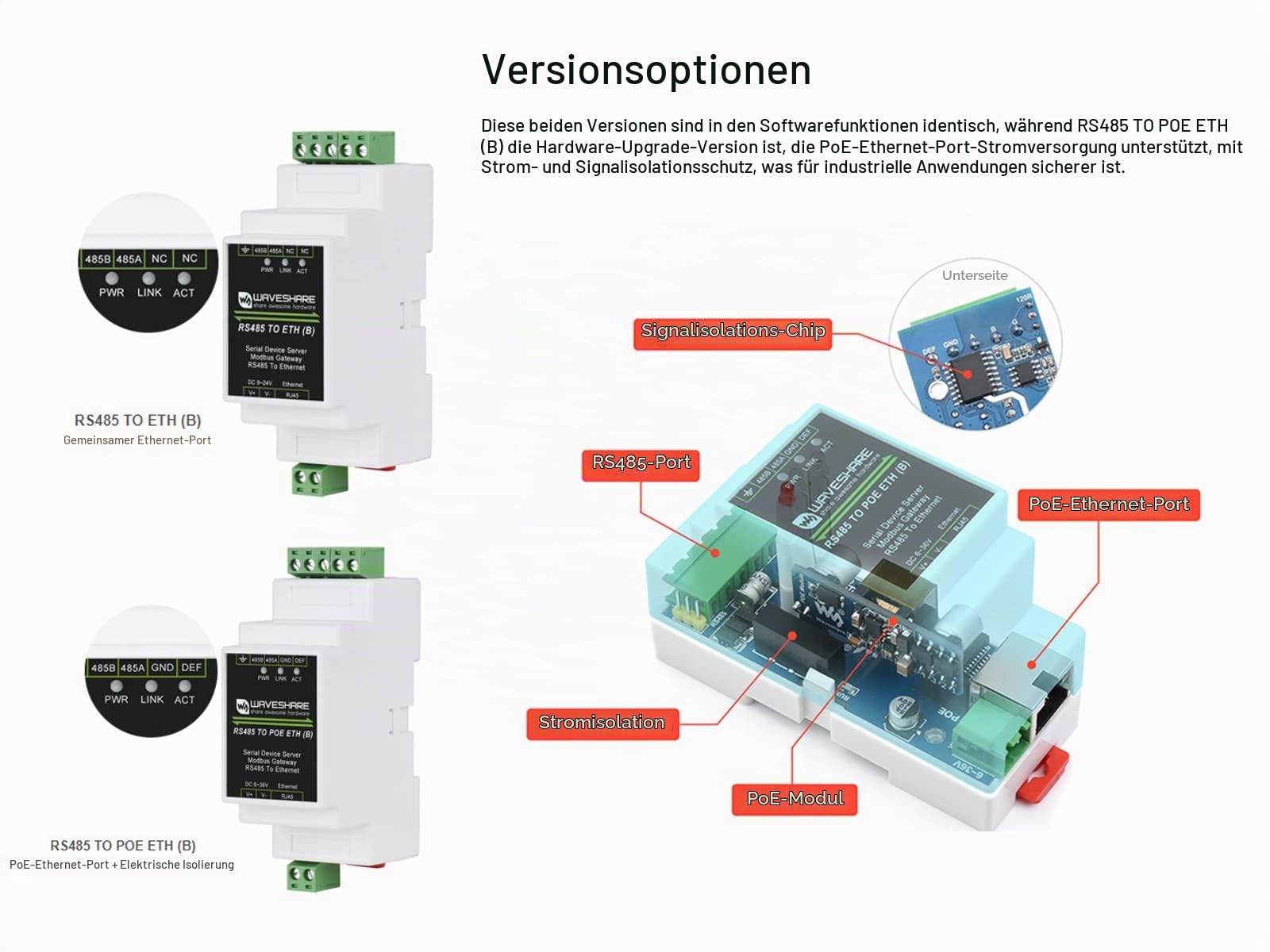

- RS485 to RJ45 Ethernet converter support bi-directional transparent data transmission between RS485 and Ethernet, with POE function and electrical isolation, uses screw terminals for power input, rail-mount case design

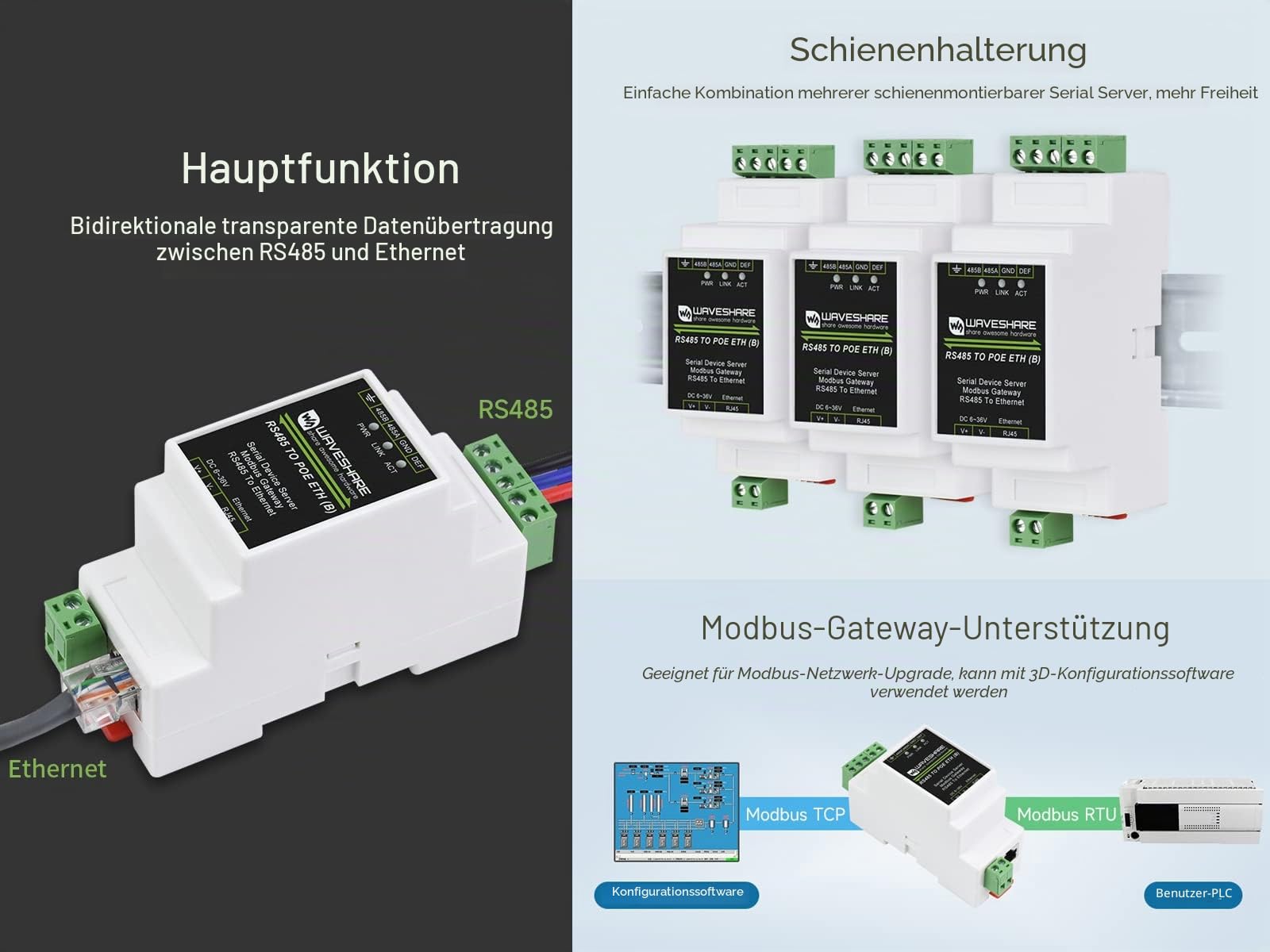

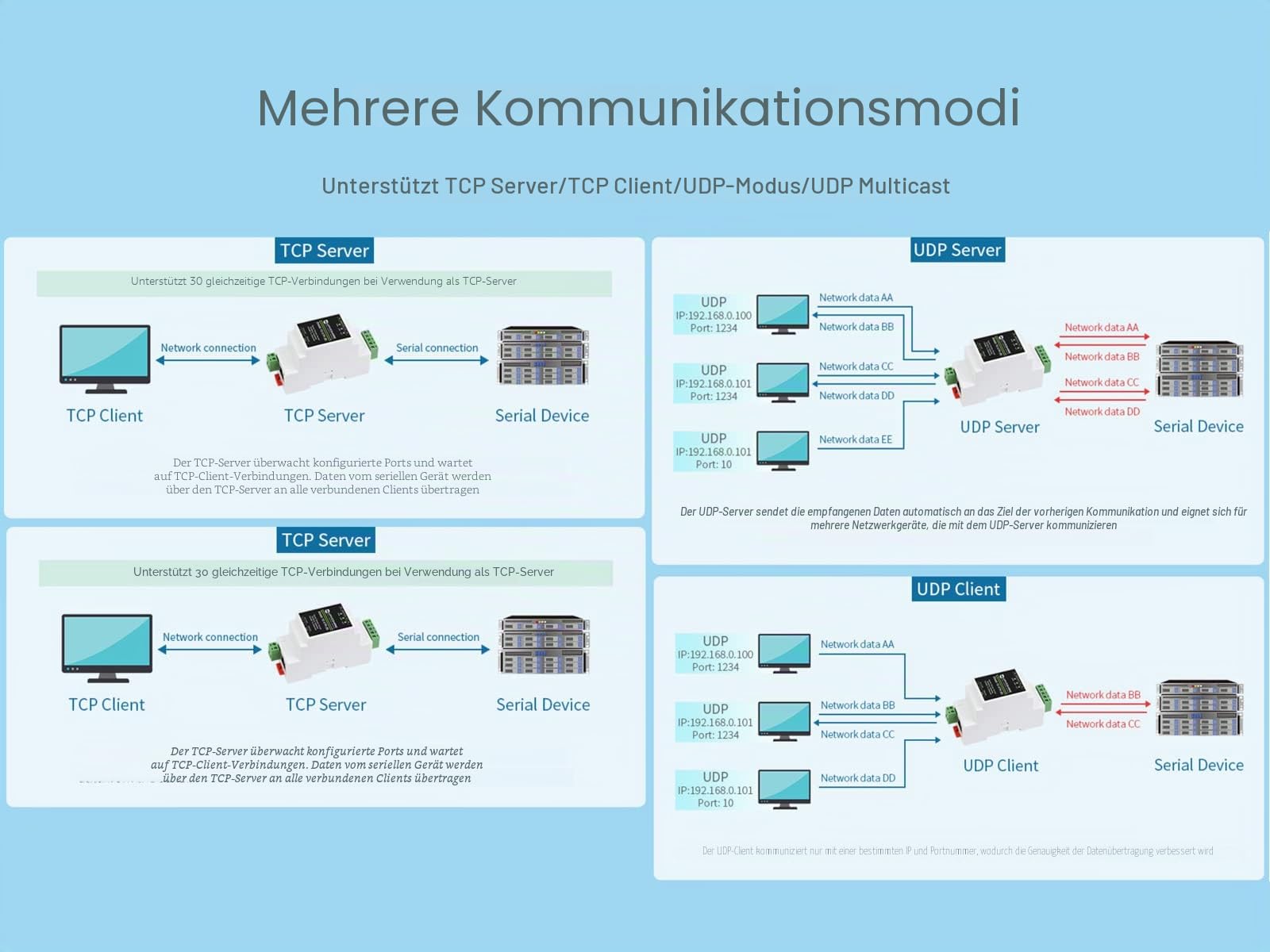

- Modbus gateway support, suitable for Modbus gridding upgrade, can be used with 3D configuration software. Multi communication modes, supports TCP server / TCP client / UDP mode / UDP multicast
- MQTT/JSON to Modbus, more flexible conversion between different protocols. Multi hosts roll-polling support, different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices
- User-defined heartbeat/registration packet, easy for cloud communication and device identification, NTP protocol support, getting network time info for serial output or data upload
- Multi configuration methods, supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address
