Lüfterlos Fanless PC N150(4C/4T) Industrie Mini PC, 4RS232 COM,2RJ45 LAN, 2HD+VGA Triple Display, 6USB, GPIO, WiFi, BT,SIM, Industrial Fanless Embedded PC DDR4 8GB RAM 256GB SSD

Marke: ROUAFWIT
Betriebssystem: OS
CPU-Modell: Celeron
CPU-Taktfrequenz: 3,6 GHz
Cache-Größe: 6 MB
Beschreibung der Grafikkarte: Integrierte
Grafik-Coprozessor: UHD Graphics
Speicherkapazität: 256 GB
Spezifische Verwendungsmöglichkeiten für Produkt: Multimedia, Persönlich, Spiele
Typ des PC-Designs: Mini-PC

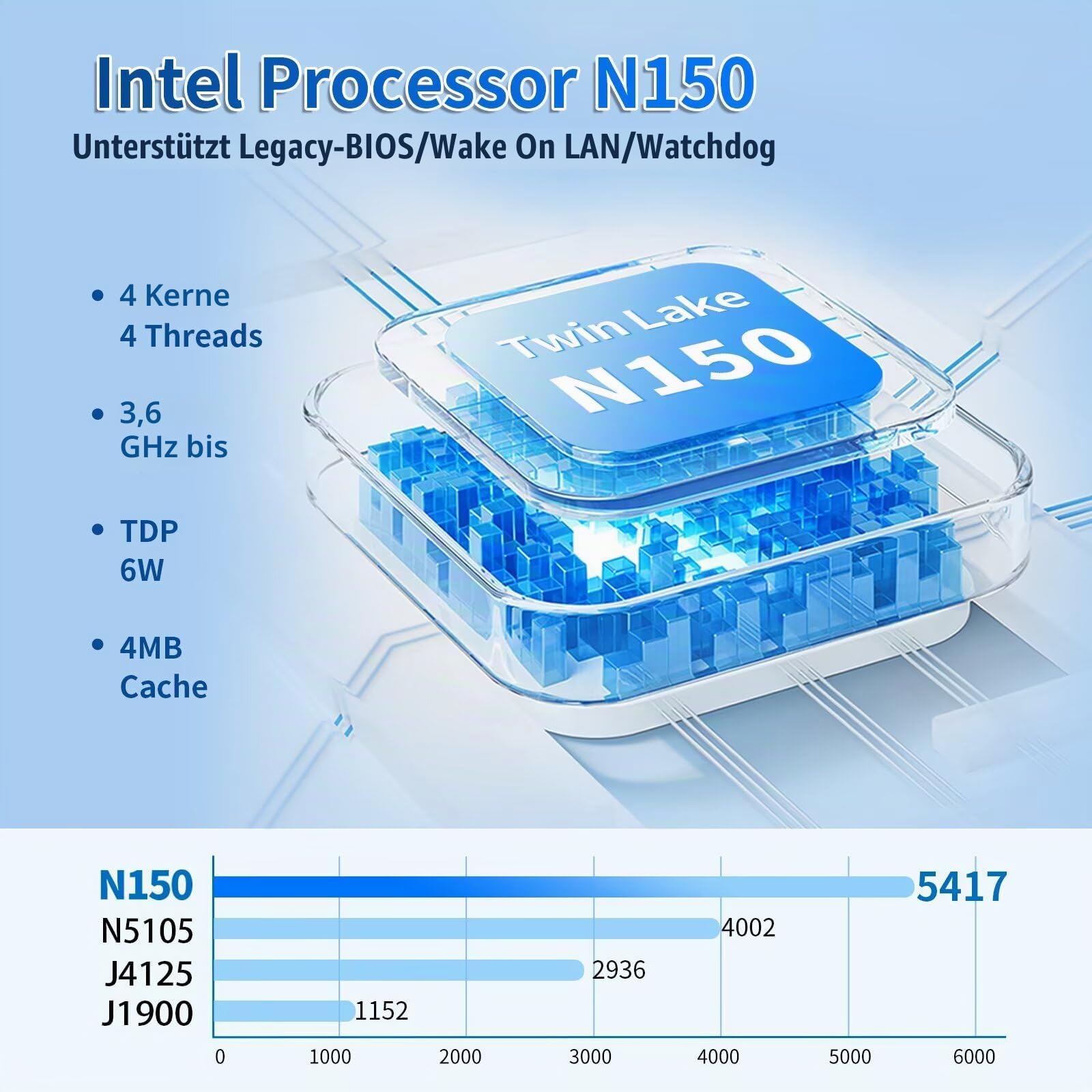

- 【Industrial-Grade N150 Processor】ROUAFWIT Fanless Industrial Mini PC powered by N150 low-power industrial processor (4 cores, 4 threads, 6MB cache, up to 3.60 GHz Turbo, TDP 6W), specially designed for industrial automation, industrial gateways, data acquisition and edge computing. Supports stable 7×24 continuous operation in harsh industrial environments

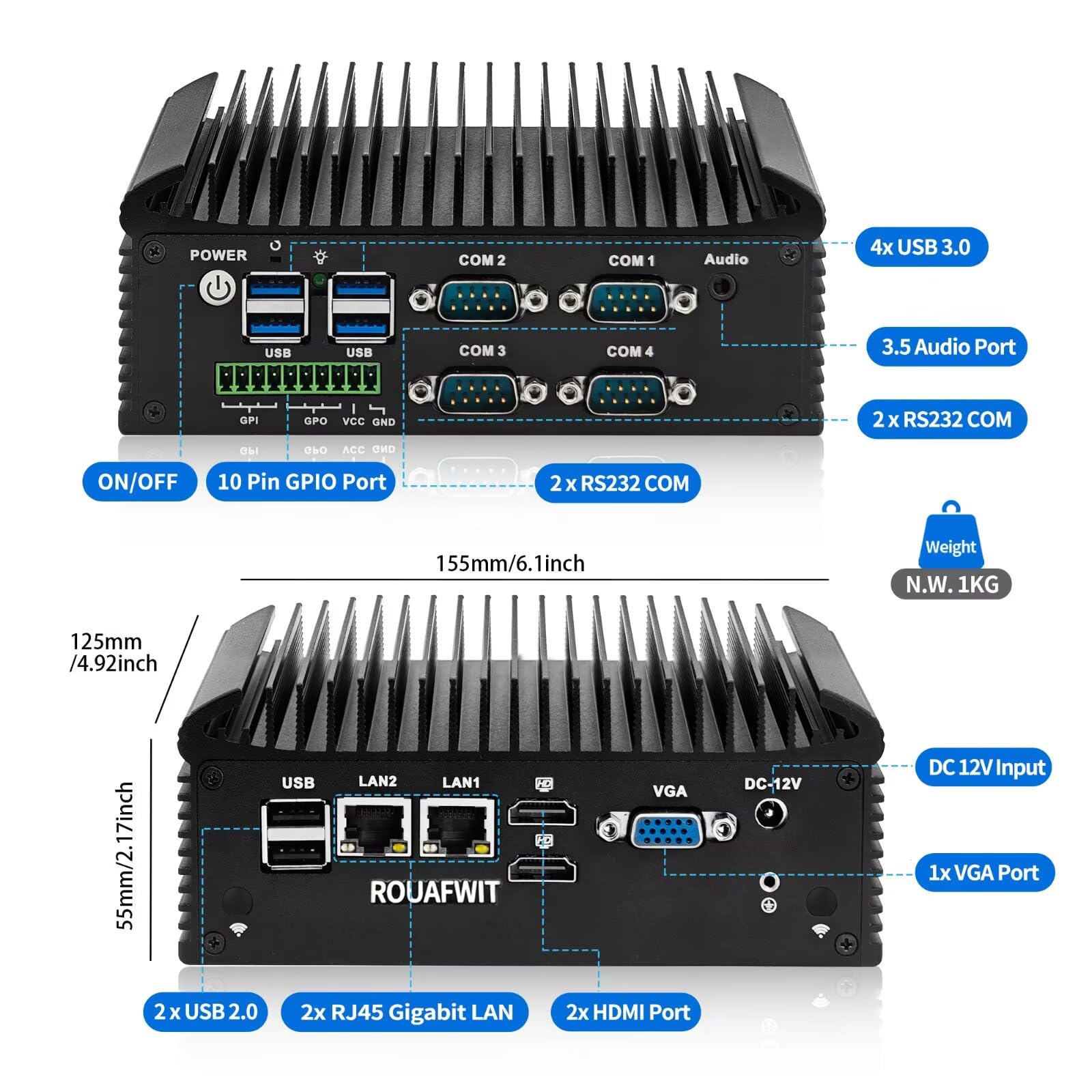

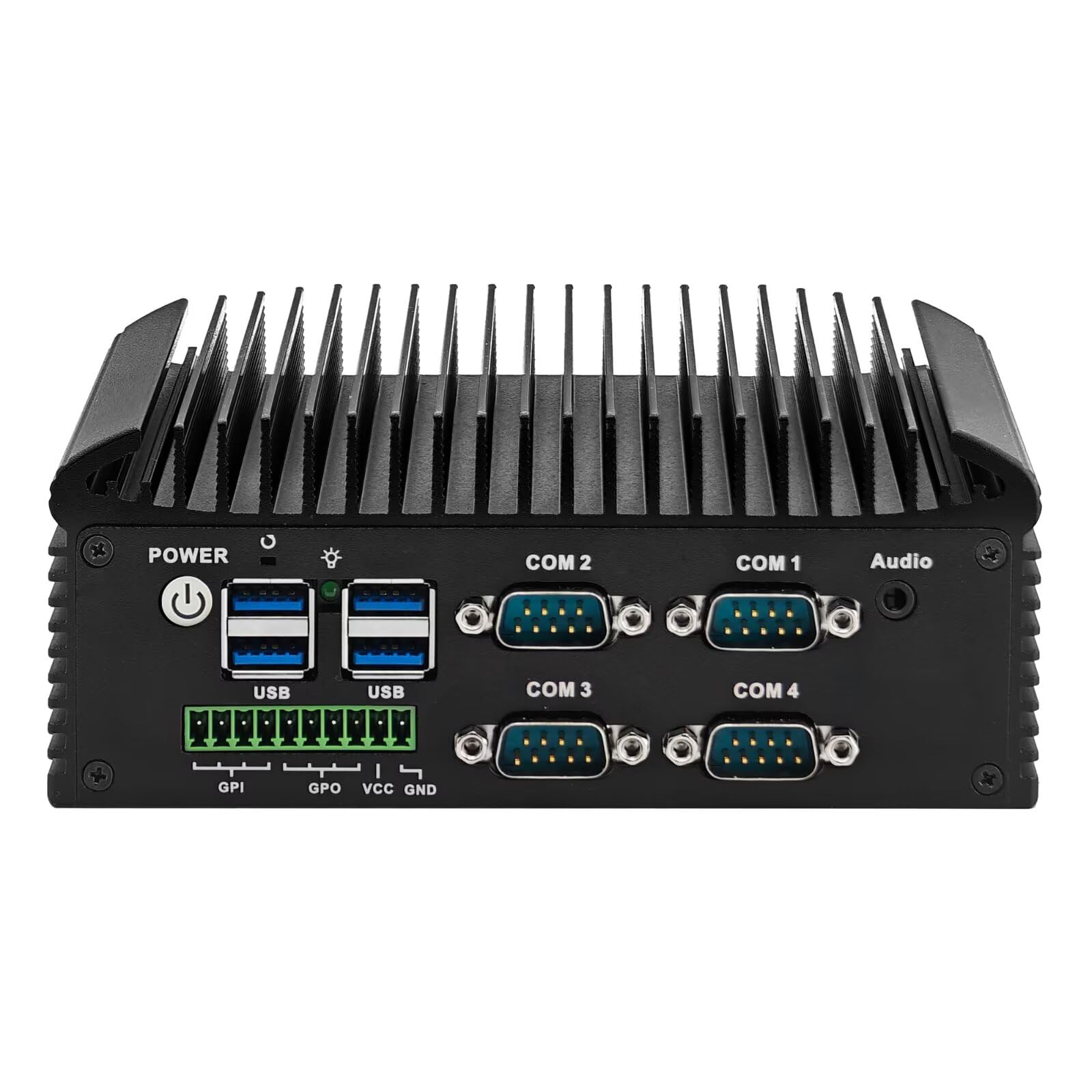

- 【4× COM Ports – RS232 / RS485 Industrial Communication】Front panel equipped with 4× DB9 serial ports, default RS232. COM1/COM2 support RS485 via jumper selection, widely compatible with PLCs, inverters, industrial instruments, sensors and automation control equipment. Ideal platform for industrial control and communication integration. Supports 2×HD (4K@60Hz) + 1×VGA triple display output
- 【Dual Gigabit Ethernet – Industrial Gateway & Data Transfer】Features 2× Realtek Gigabit RJ45 Ethernet ports with PXE and Wake-on-LAN (WOL) support, enabling network isolation, data forwarding and remote management. Well suited for industrial gateways, SCADA systems and industrial Ethernet applications

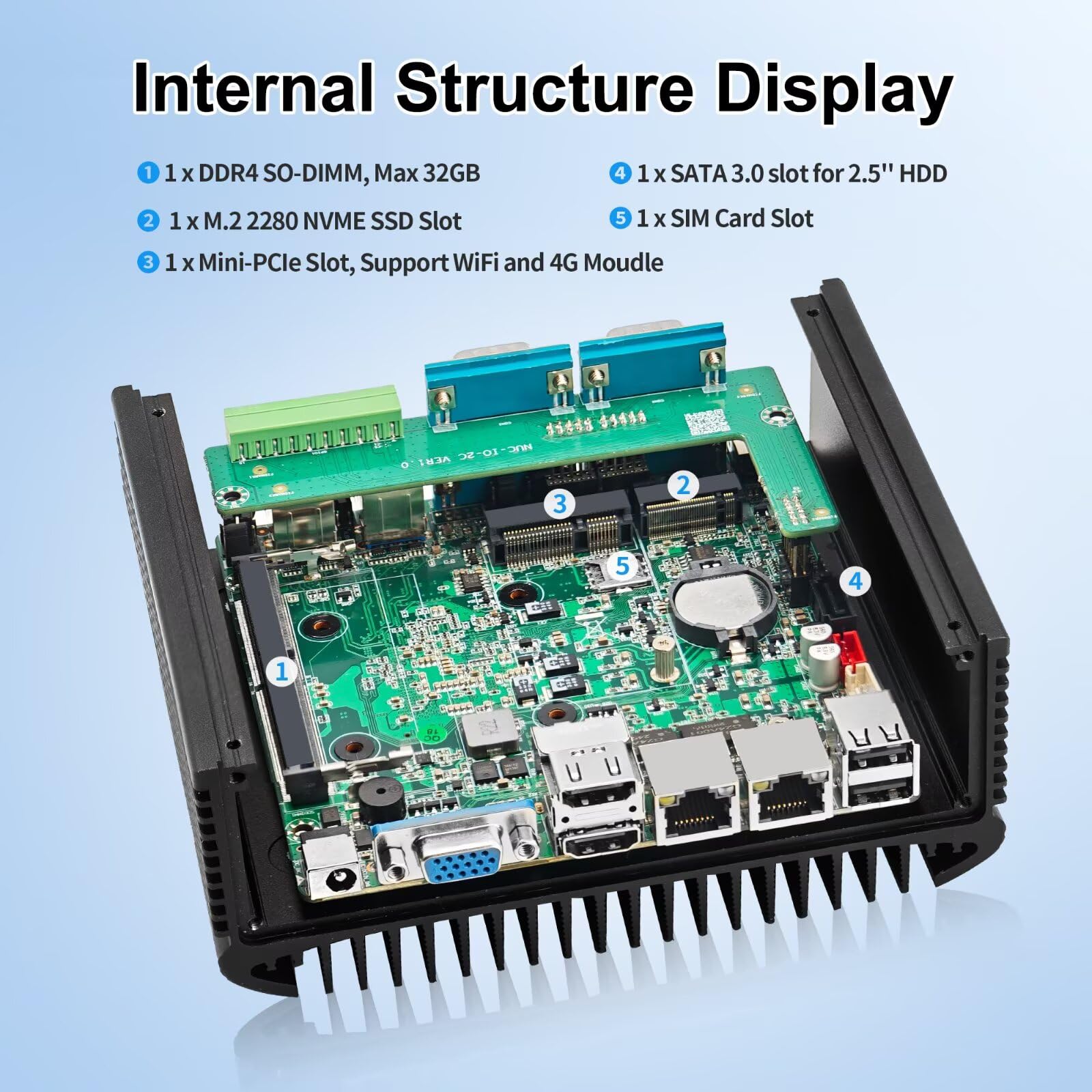

- 【Rich Expansion Interfaces – Flexible Industrial Deployment】Supports DDR4 3200MHz SODIMM memory up to 32GB. Equipped with 1x M.2 2280 NVMe and 1x 2.5" SATA 3.0 storage interfaces. Built-in 1x Mini-PCIe slot supports 4G LTE and WiFi modules, with integrated SIM card slot for industrial wireless communication
- 【Fanless Metal Chassis – Industrial-Grade Reliability】Full metal fanless cooling design ensures silent and dust-resistant operation. Built-in hardware watchdog timer (0–255 seconds auto reset). Supports AT / ATX power mode switching with DC 12V input. Compatible with Linux and Ubuntu, ideal for cabinet mounting and industrial field deployment
