Waveshare LTE Cat 6 Communication HAT Compatible with Raspberry Pi, LTE-A Global Multi-Band, GNSS Positioning, Comes with EM060K-GL Module

Marke: Waveshare
Modellname: Waveshare LTE Cat 6 Communication HAT
Konnektivitätstechnologie: GPIO, USB, WLAN

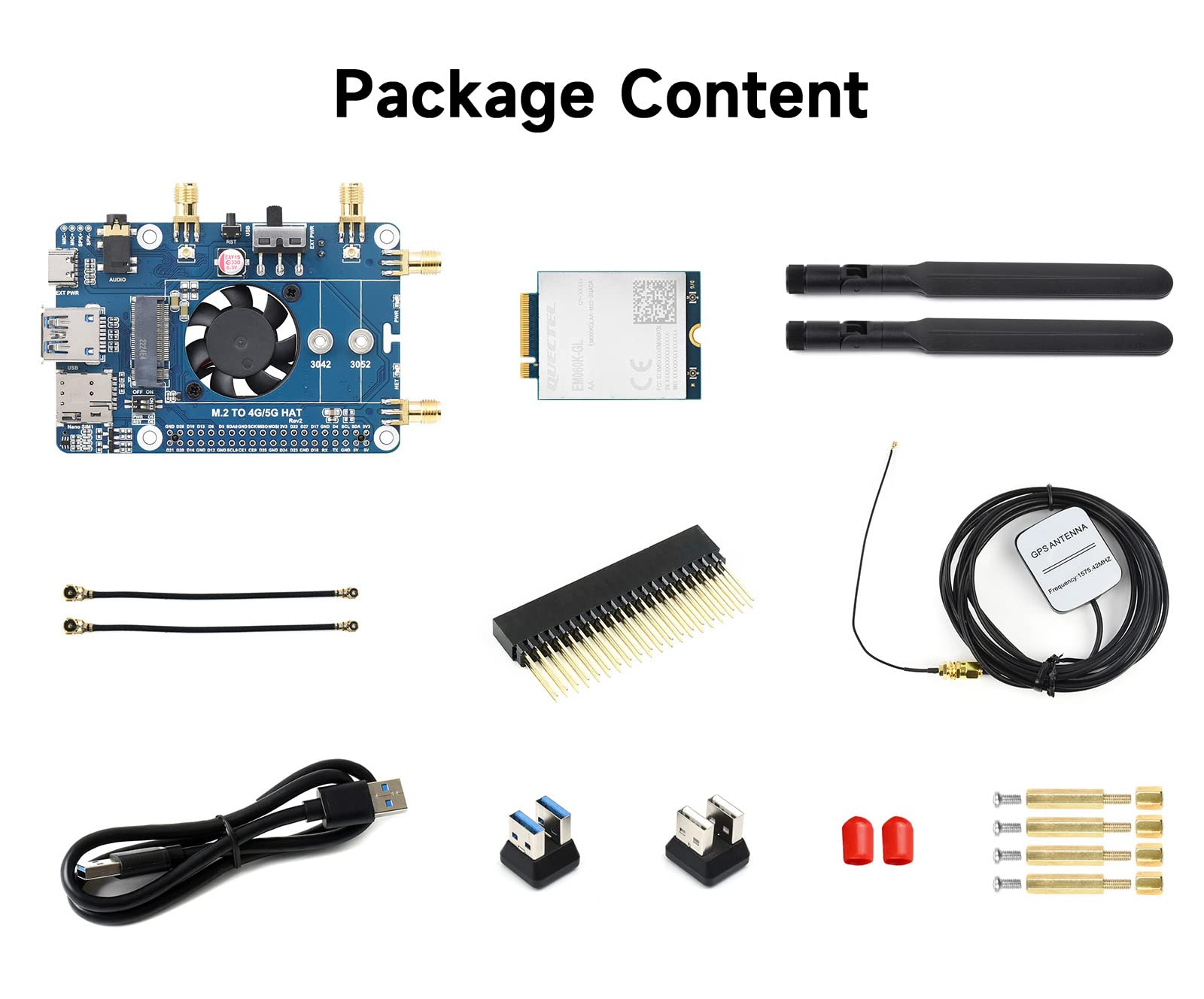

Enthaltene Komponenten: EM060K-GL-Modul, USB-C-Kabel, 4x SMA auf IPEX Antennenadapter
Betriebssystem: Linux, Windows, Android

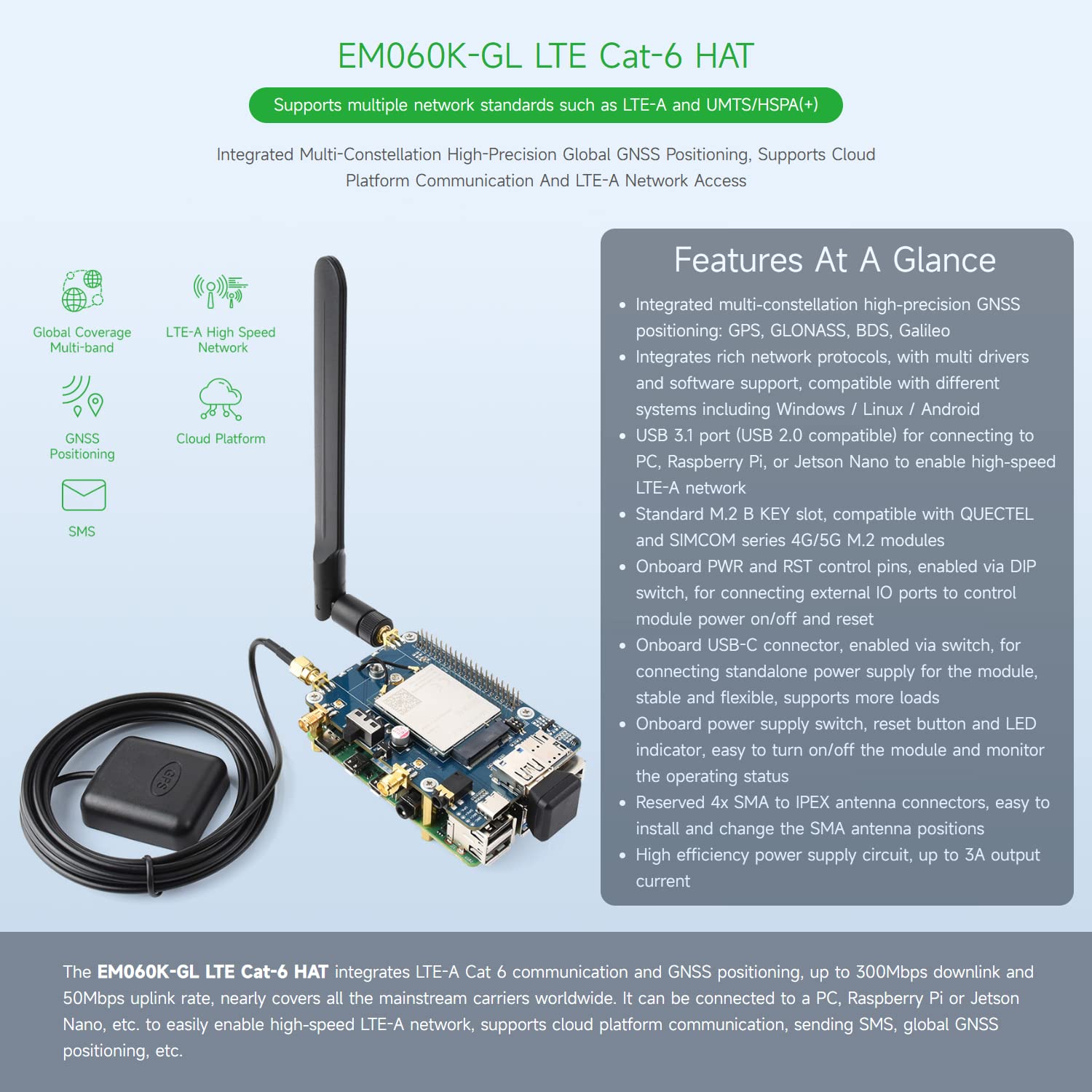

- Integrated multi-constellation high-precision GNSS positioning: GPS, GLONASS, BDS, Galileo. Integrates rich network protocols, with multi drivers and software support, compatible with different systems including Windows / Linux / Android
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano to enable high-speed LTE-A network. Standard M.2 B KEY slot, compatible with QUECTEL and SIMCOM series 4G/5G M.2 modules

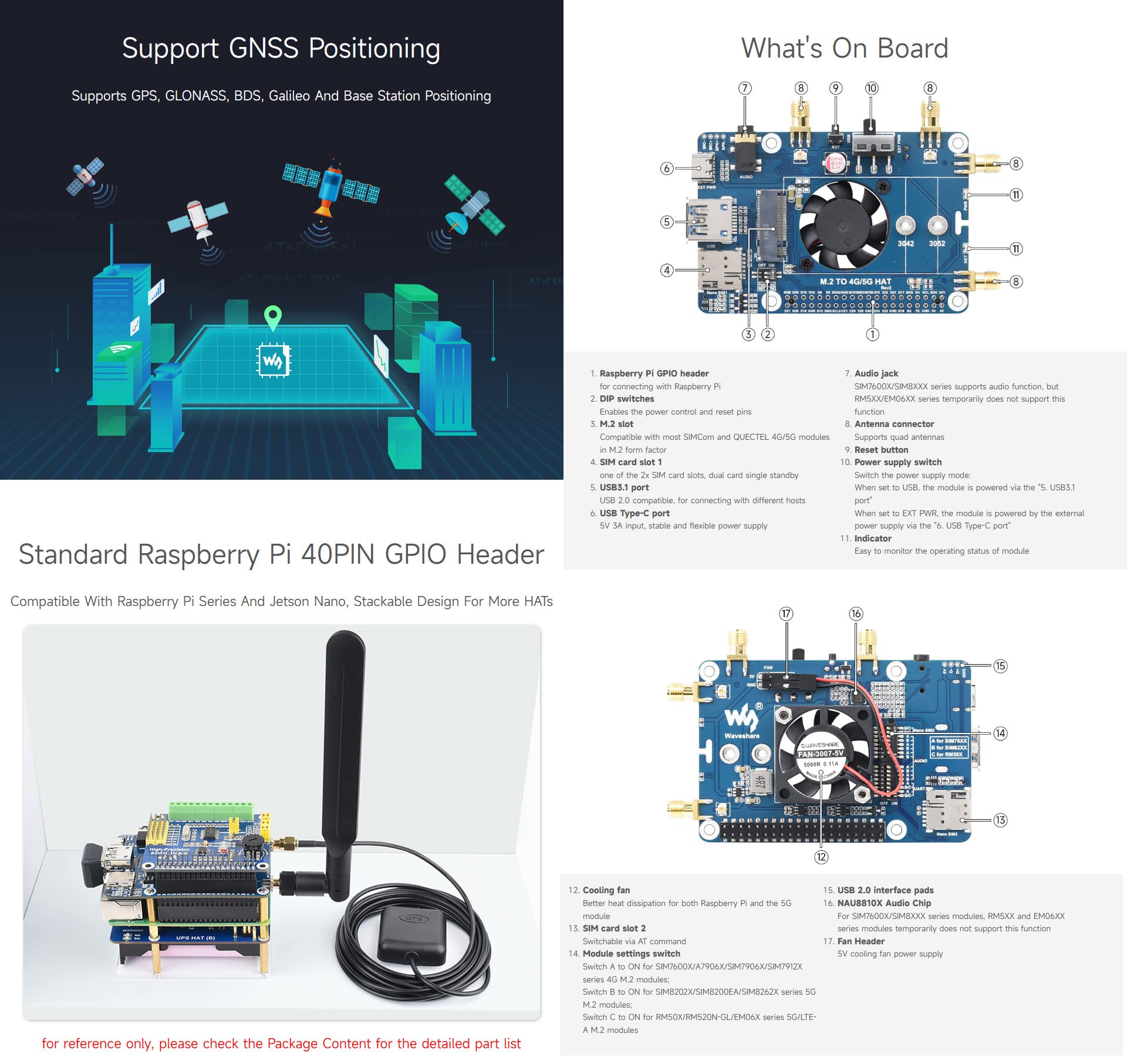

- Onboard PWR and RST control pins, enabled via DIP switch, for connecting external IO ports to control module power on/off and reset. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, stable and flexible, supports more loads
- Onboard power supply switch, reset button and LED indicator, easy to turn on/off the module and monitor the operating status
- Reserved 4x SMA to IPEX antenna connectors, easy to install and change the SMA antenna positions. High efficiency power supply circuit, up to 3A output current
